Solar Combiner Box Enclosures



What Is a Solar Combiner Box Enclosure?

A solar combiner box enclosure houses the electrical components used to combine the outputs of multiple PV strings into a single circuit. It protects fuses, disconnect switches, surge protection devices, busbars, terminals, and monitoring equipment from environmental exposure.

For system integrators and EPC contractors, the enclosure is more than just a protective box. Its design directly affects installation efficiency, maintenance access, cable management, and long-term outdoor reliability.

Our sheet metal combiner box enclosures can be configured for applications ranging from small residential PV arrays to large commercial and utility-scale solar projects.

Designed for Reliable Field Performance

The mechanical structure of a combiner box enclosure has a direct impact on installation efficiency, serviceability, and long-term durability.

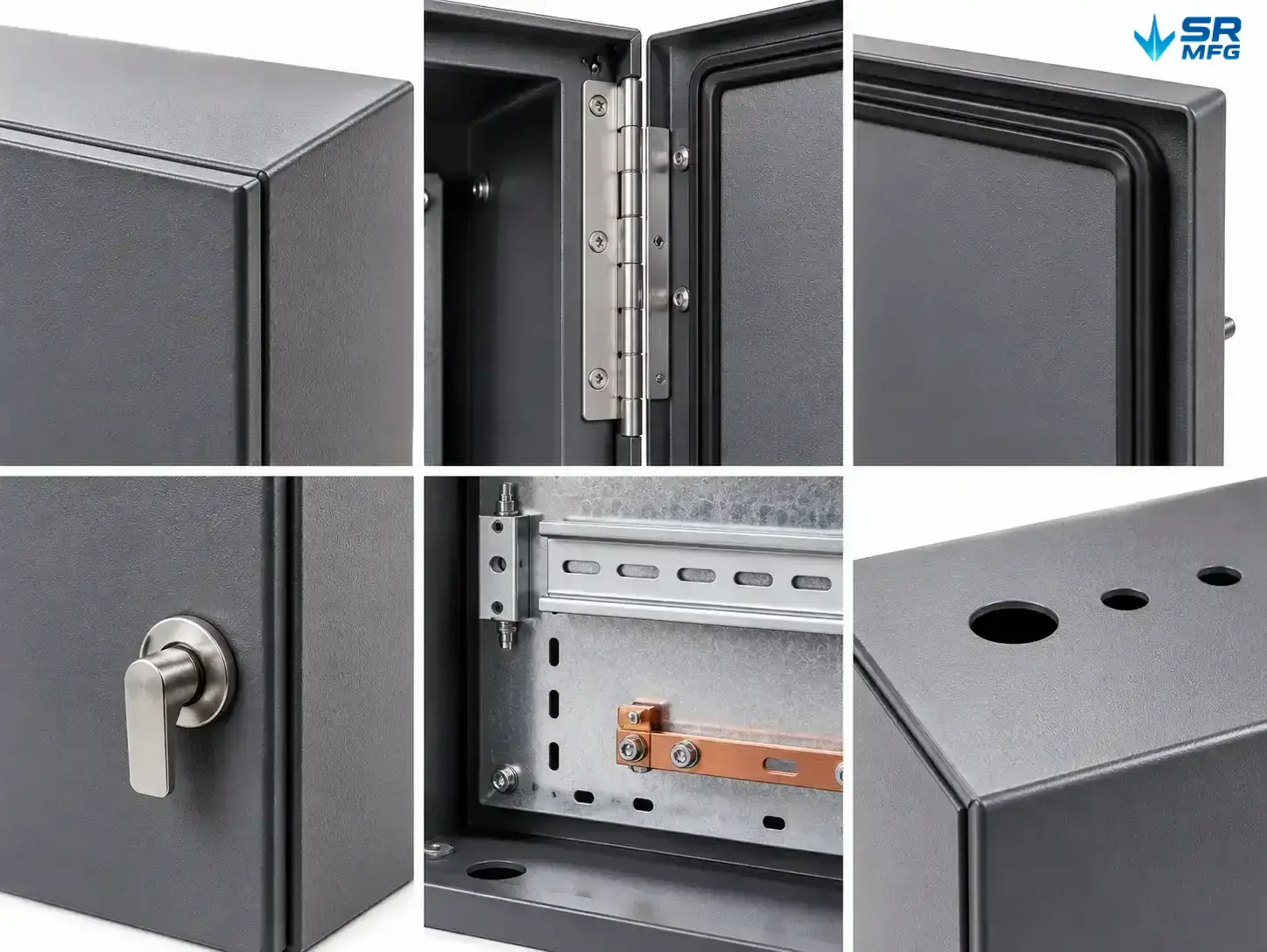

Key structural features include:

• Welded or assembled construction — Fully welded designs provide maximum rigidity, while bolted assemblies offer greater flexibility for installation and field maintenance
• Reinforced door hinges — Stainless steel piano hinges withstand repeated opening and closing in outdoor environments
• Quarter-turn latches — Provide quick access for routine maintenance while helping maintain enclosure sealing performance
• Pre-punched mounting holes — Standardized mounting patterns can be configured for wall-mounted, pole-mounted, or floor-mounted installations

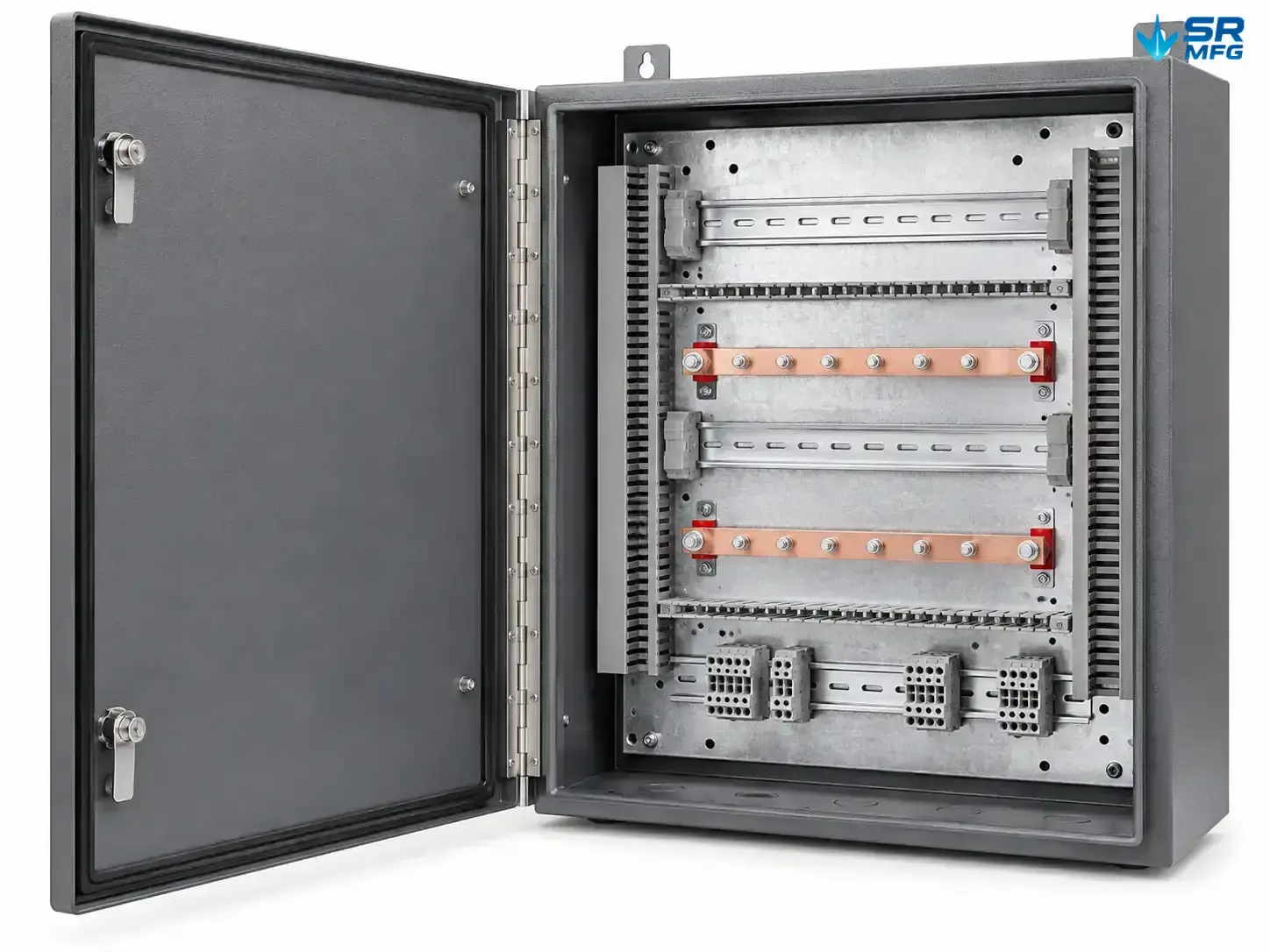

• Internal DIN rail mounting — DIN rails can be pre-installed for circuit breakers, fuse holders, terminals, and other standard electrical components

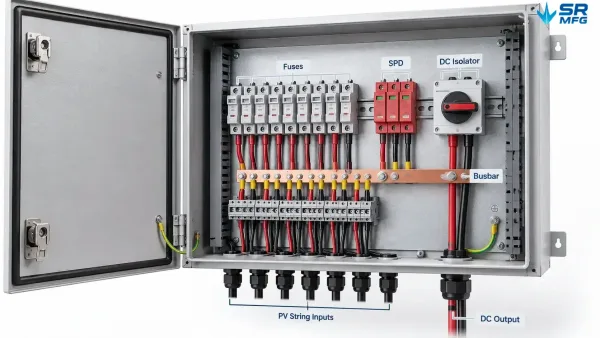

The internal layout can also accommodate busbars, cable management components, terminal blocks, and monitoring devices, with reserved space designed around your electrical configuration.

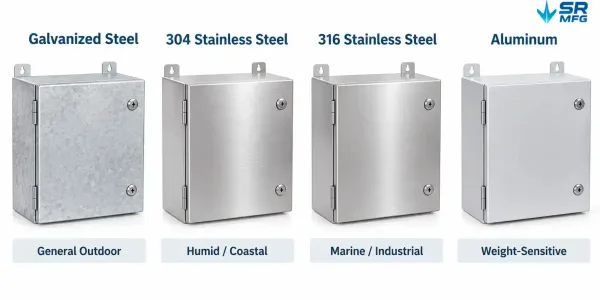

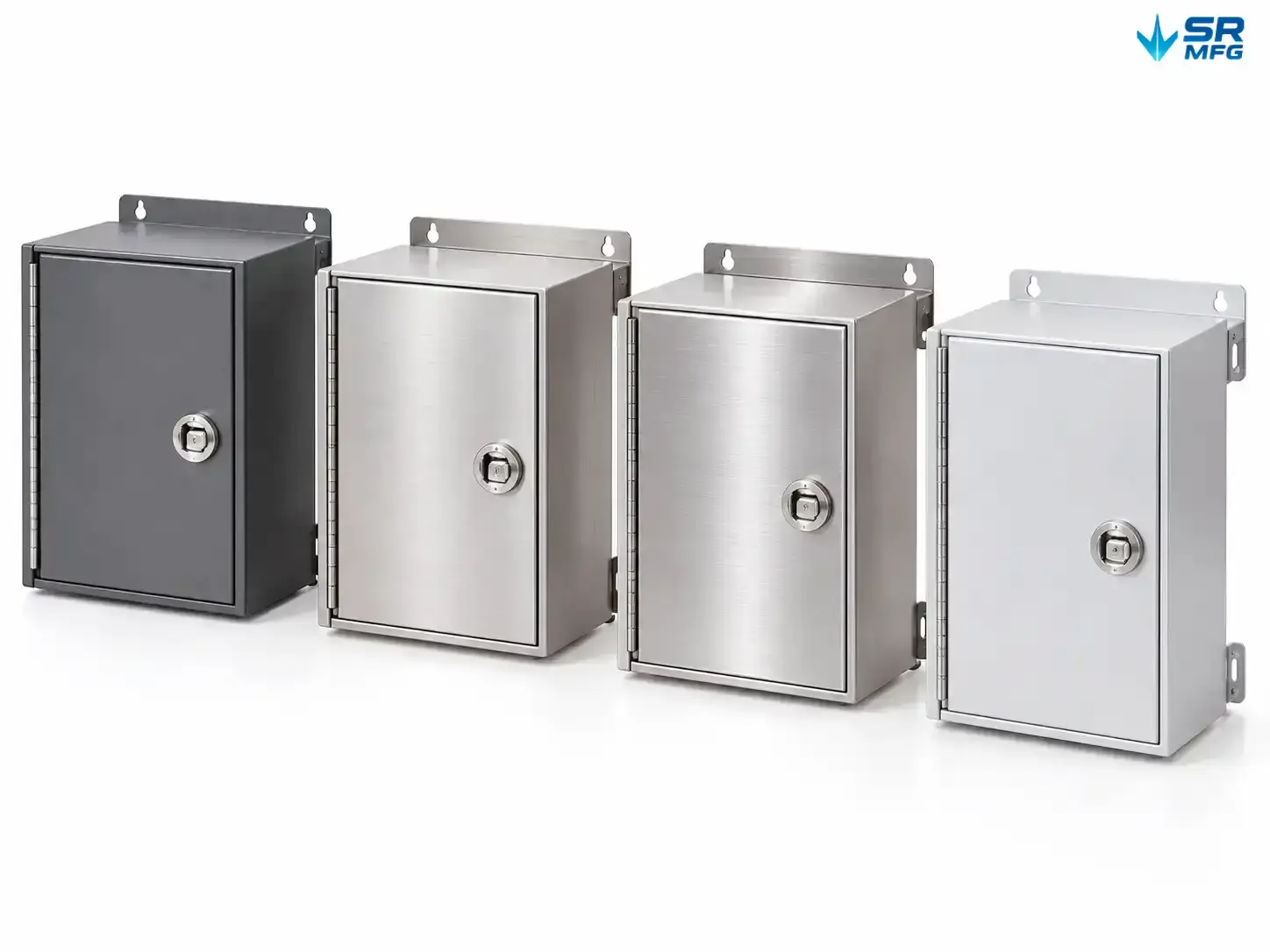

Material Selection Guide

Enclosure material affects corrosion resistance, weight, cost, manufacturability, and expected service life. The right choice depends on the installation environment and project requirements.







Surface Finish Options

• Powder Coating — Standard corrosion protection with a wide range of customizable RAL colors
• Hot-Dip Galvanizing — Heavy-duty zinc protection for demanding outdoor and industrial environments
• Anodizing — Available for aluminum enclosures to improve surface hardness, corrosion resistance, and appearance

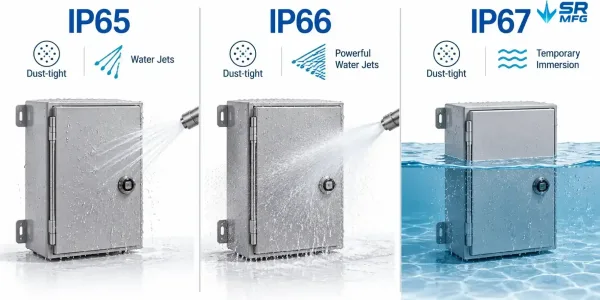

Understanding IP Protection Ratings

The IP rating indicates how effectively an enclosure prevents dust and water from entering. Solar PV equipment often operates in exposed environments, making reliable sealing an important part of enclosure design.

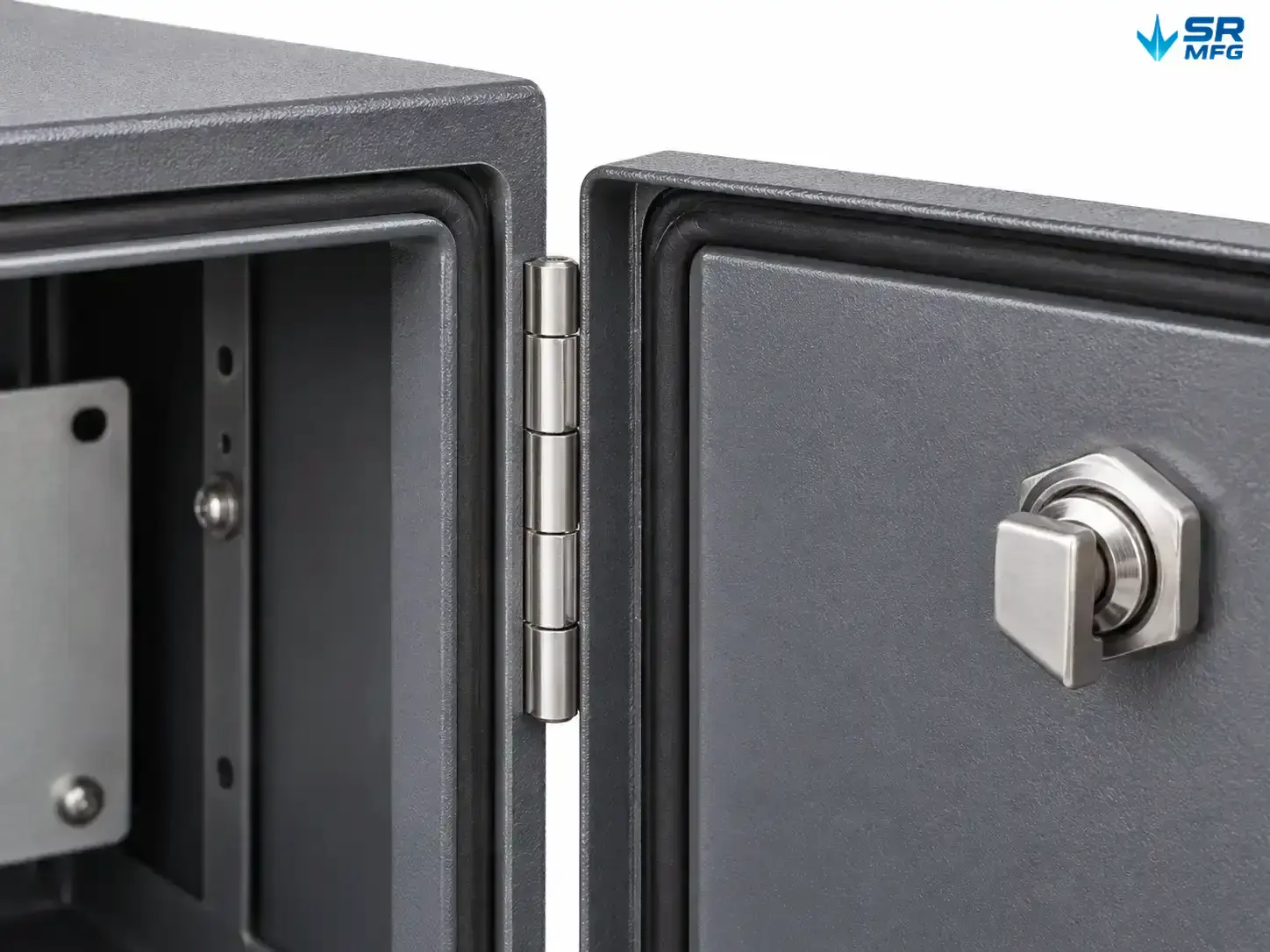

Gasket materials include EPDM, silicone, and neoprene, allowing the sealing system to be selected according to temperature range, weather exposure, and chemical environment.

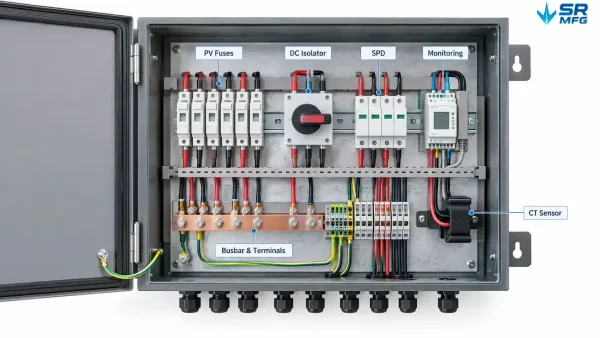

System Compatibility

The enclosure can be configured around components from major solar electrical equipment manufacturers. Internal dimensions, mounting points, DIN rails, busbars, and cable routing can all be designed around the actual component layout.

Compatible components include:

• PV string fuses and fuse holders, including 10 × 38 mm and 14 × 51 mm formats
• DC isolator switches rated up to 250A
• Type 2 surge protection devices
• Monitoring and communication equipment, including CT sensors and data loggers
• Busbars, terminals, and cable termination hardware

During manufacturing, the internal space can be customized according to your exact component arrangement and wiring requirements.

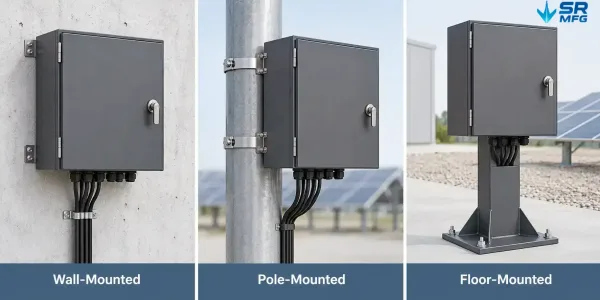

Mounting Options

Three common mounting configurations cover most solar installation scenarios.

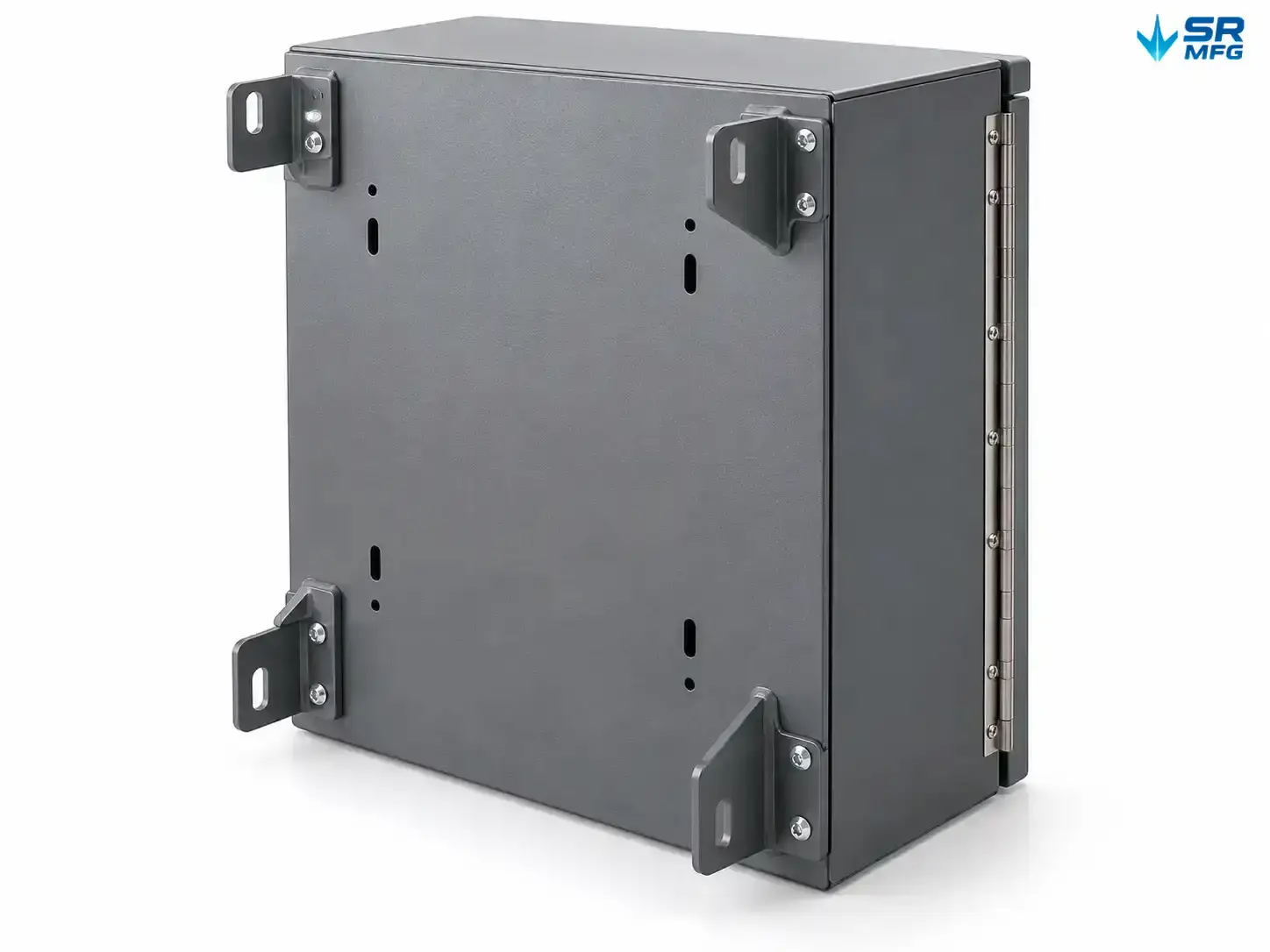

Wall-Mounted

• Pre-drilled rear mounting plate with standard M8/M10 mounting holes
• Suitable for concrete walls, masonry, and steel structures
• Recommended clearance: approximately 100 mm above and 50 mm on each side for ventilation and service access

Pole-Mounted

• Adjustable stainless steel pole clamps for pole diameters from 60 mm to 150 mm
• Mounting orientation can be adjusted to optimize cable entry direction
• Anti-vibration rubber pads can be added where required

Floor-Mounted

• Welded steel base frame with anchor bolt mounting provisions
• Adjustable mounting height, typically 800–1,200 mm
• Suitable for substations, commercial PV plants, and utility-scale solar installations

Customization Capabilities

Standard enclosure designs cover many common applications. For projects with specific mechanical, electrical, or installation requirements, we provide full OEM/ODM sheet metal fabrication services.

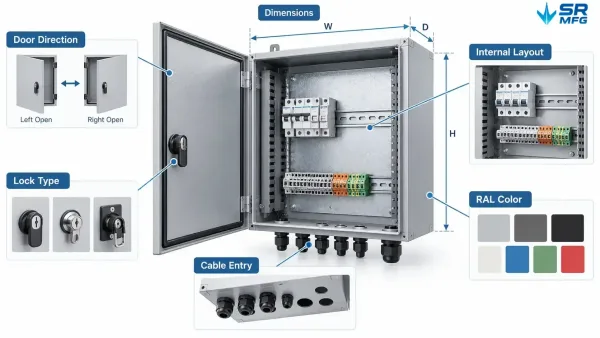

Customizable Parameters

• Overall enclosure dimensions: length, width, and height
• Internal component layout and mounting positions

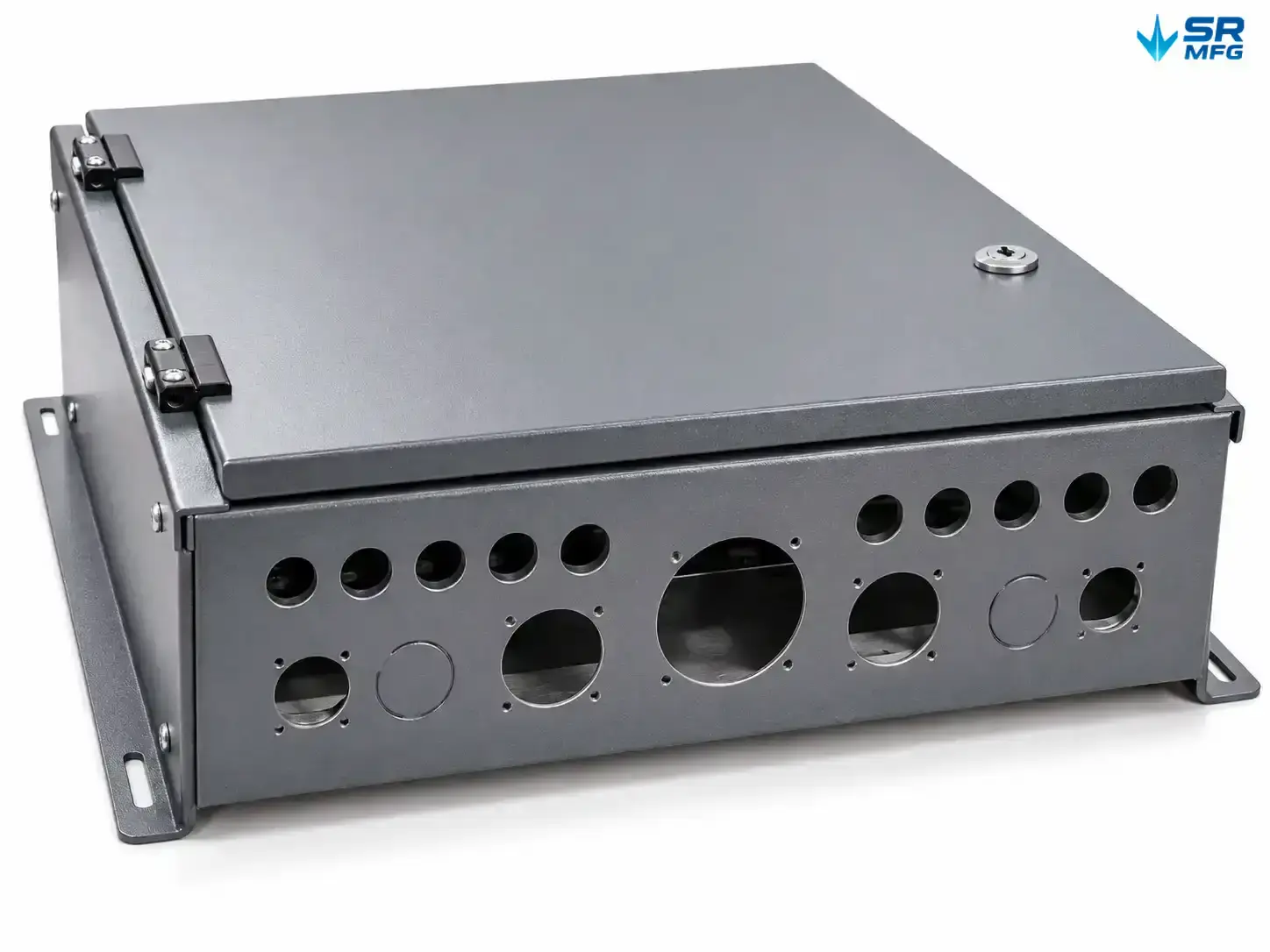

• Cable entry hole quantity, diameter, and location
• Door opening direction: left-hand or right-hand
• Locking system: quarter-turn latch, padlockable hasp, or key lock
• Branding: embossed logo, screen printing, or engraving
• Custom powder coating colors based on RAL specifications

Customization Process

1. Submit your requirements, drawings, or component layout
2. Engineering review and DFM feedback
3. Drawing confirmation
4. Prototype production within 7–10 days
5. Sample approval and transition to mass production

Why Choose Our Solar Combiner Box Enclosures

Manufacturing Capabilities

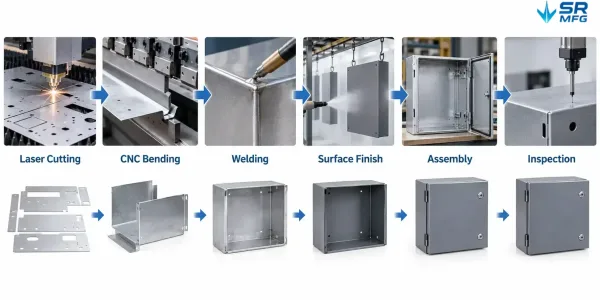

• In-house laser cutting, CNC bending, welding, and sheet metal fabrication
• Material thickness range from 0.8 mm to 2.0 mm
• Standard dimensional tolerance of ±0.5 mm, with tolerances down to ±0.2 mm available for critical features upon request
• Salt spray resistance of 500+ hours for powder-coated finishes and 1,000+ hours for hot-dip galvanized finishes
• Operating temperature range from -40°C to +80°C

Service Advantages

• MOQ for standard products starting from 100 units
• Prototype samples available within 7–10 working days
• Typical lead time for custom production orders: 15–25 days
• Technical support available for enclosure design and internal component layout
