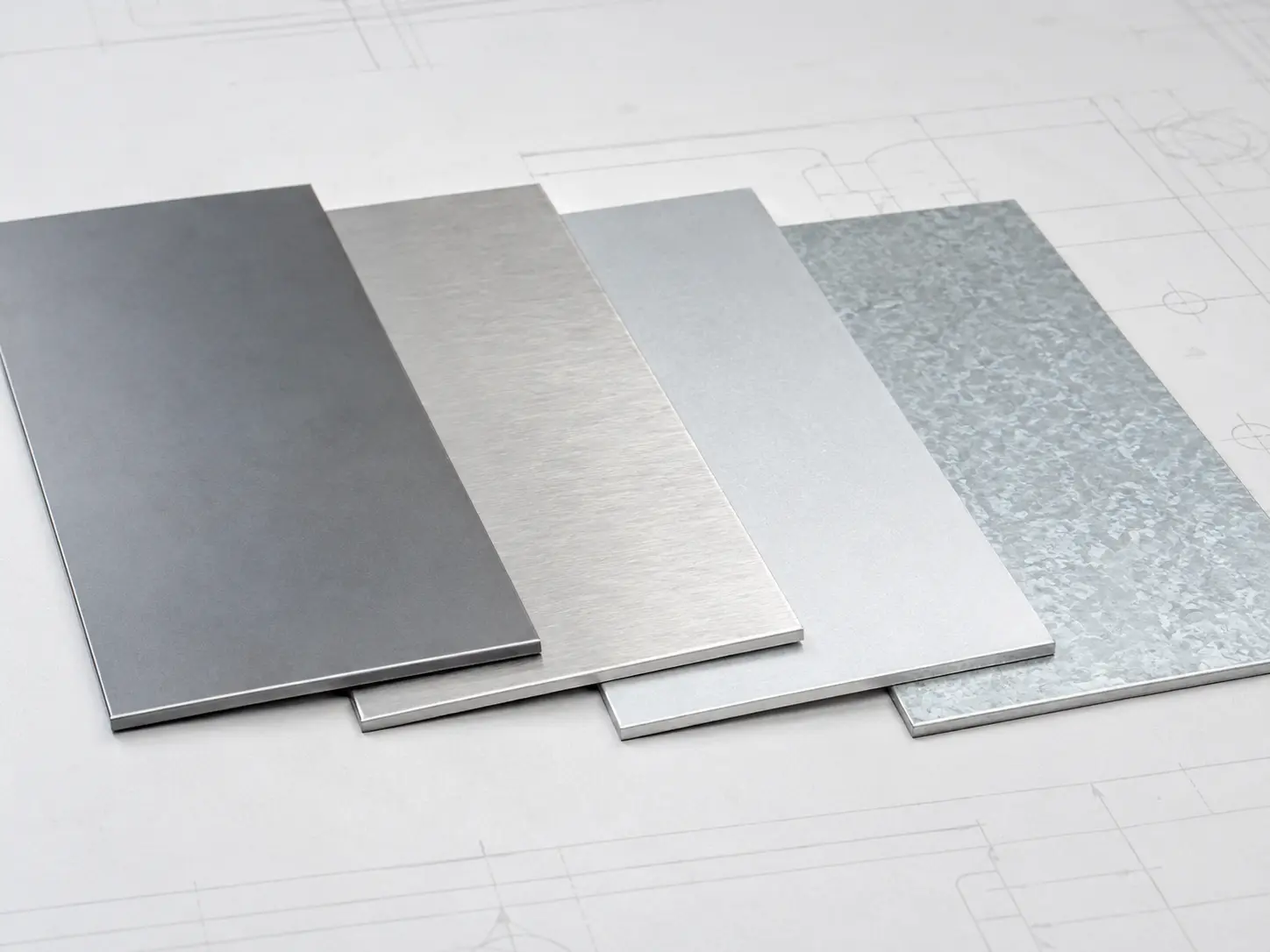

Material selection is the starting point of sheet metal design. Choosing the right material is like choosing the foundation for a building—it determines what’s possible downstream. The table below summarizes the most commonly used sheet metal materials and their key properties.

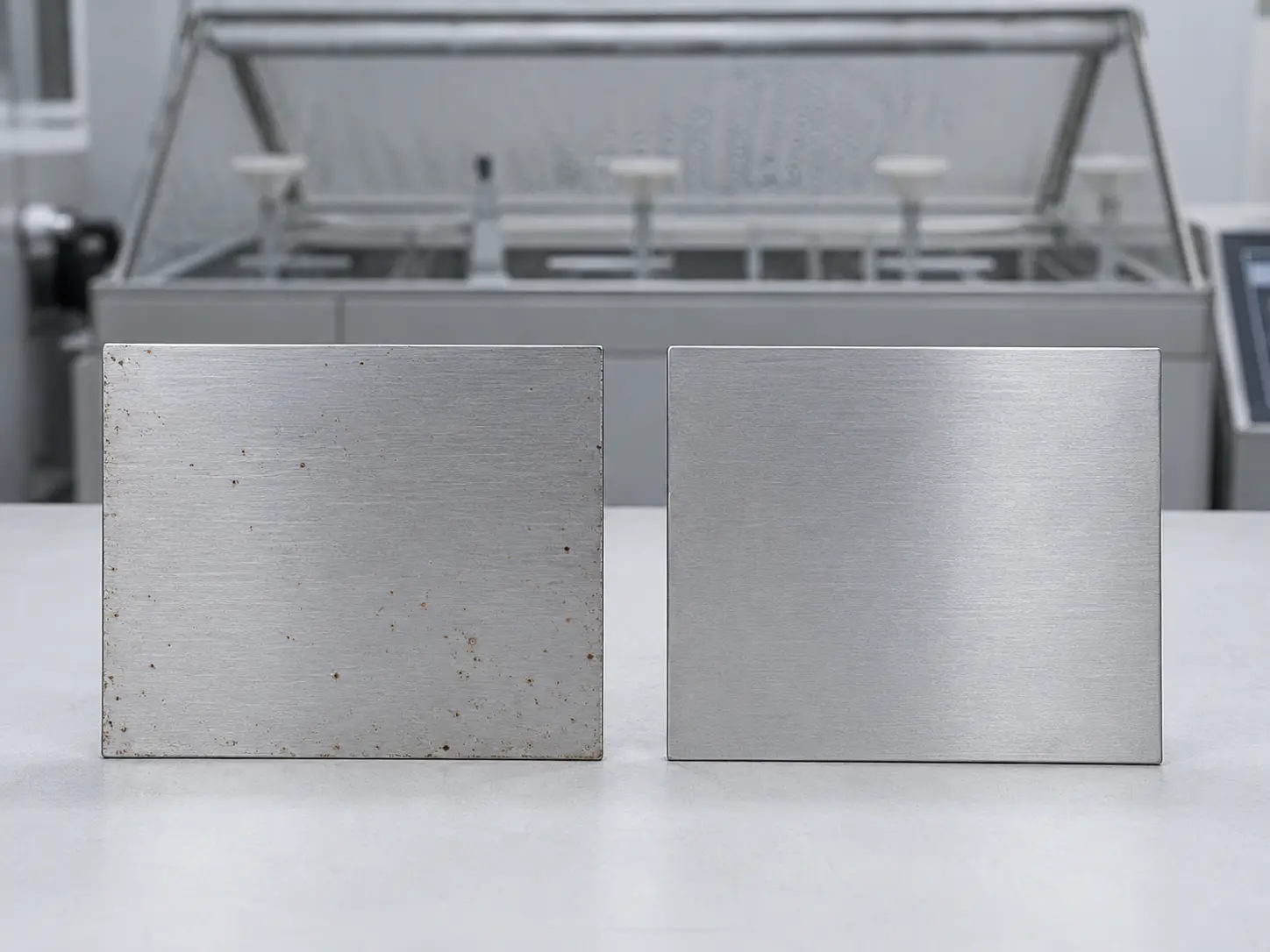

There are too many grades to cover exhaustively, so we’ll use two common head-to-head comparisons as examples: 304 vs. 316 stainless and 5052 vs. 6061 aluminum.

Thicker isn’t always better—and thinner isn’t always cheaper. The right thickness is a balance of performance, cost, and manufacturability. Here are common thickness recommendations by application:

Different materials suit different finishing methods. The wrong combination can lead to poor adhesion, insufficient corrosion resistance, or a sharp cost increase.

Hole & Slot Design

Holes look simple on a drawing, but in reality they’re one of the most common sources of scrap. We’ve worked on many projects where a designer specified a non-standard diameter like 5.123 mm—and suddenly the shop either had to buy a special drill or switch to laser cutting. Both options add time and drive up cost.

Minimum hole diameter (typical):

Edge distance & hole spacing:

• Minimum distance from hole to bend line: ≥ 2×T + R (inside bend radius)
  • Example: 2 mm sheet with a 2 mm inside radius → keep the hole at least 6 mm from the bend line
  • Why: material stretches during bending; holes too close can deform (often becoming oval)
• Minimum distance from hole to part edge: ≥ 1.5×T
  • Example: 1 mm sheet → at least 1.5 mm to the edge
  • Why: edges are prone to cracking during cutting
• Minimum hole-to-hole spacing: ≥ 2×T
  • Example: 2 mm sheet → at least 4 mm between holes
  • Why: spacing that’s too tight can deform the sheet or break punches

Notch design:

• Width: ≥ 1.5×T
• Length: up to 5×T
• Corner radius: 0.5×T (recommended to reduce stress concentration)

Bending is one of the most detail-sensitive operations in sheet metal fabrication. Good bend geometry reduces rework and scrap; poor bend geometry can make a part impossible to build.

Minimum inside bend radius

Flange height

• Minimum flange height: ≥ 4×T
• • Example: 1.5 mm sheet → flange height ≥ 6 mm
  • Why: the press brake needs enough material to clamp; too short can slip or mislocate

Bend relief cuts

A bend relief is a small cut added where bends intersect to prevent tearing. Common shapes include rectangular, round, and oval.

ISO 2768 is one of the most widely used tolerance standards for sheet metal. It defines four tolerance classes: Fine (f), Medium (m), Coarse (c), Very coarse (v).

Linear tolerances (ISO 2768-m, the most common default)

Angular tolerances

Geometric tolerances (ISO 2768-K, medium level)

• Straightness (≤100 mm): 0.1 mm
• Flatness (≤100×100 mm): 0.15 mm
• Perpendicularity (≤100 mm): 0.2 mm
• Coaxiality (≤50 mm diameter): 0.1 mm

Beyond ISO standards, industry “machine reality” tolerances are often more practical:

Flat pattern calculation looks straightforward, but it’s one of the easiest places to make expensive mistakes. We’ve seen plenty of parts go out of spec simply because the bend deduction/allowance was wrong.

Basic concept:

Bend allowance (BA):

Where:

• BA = bend allowance
• Angle = bend angle (degrees)
• R = inside bend radius
• K = K-factor (neutral axis shift)
• T = material thickness

Typical K-factor ranges

Recommended tools

• CAD sheet metal modules: SOLIDWORKS, Autodesk Inventor, PTC Creo (Sheet Metal), Onshape (Sheet Metal), Siemens NX
• Online calculators (bend allowance / flat length): Engineer’s Ephemeris（Bend Allowance/Flat Length）
• Test coupons: Always run a sample before full production

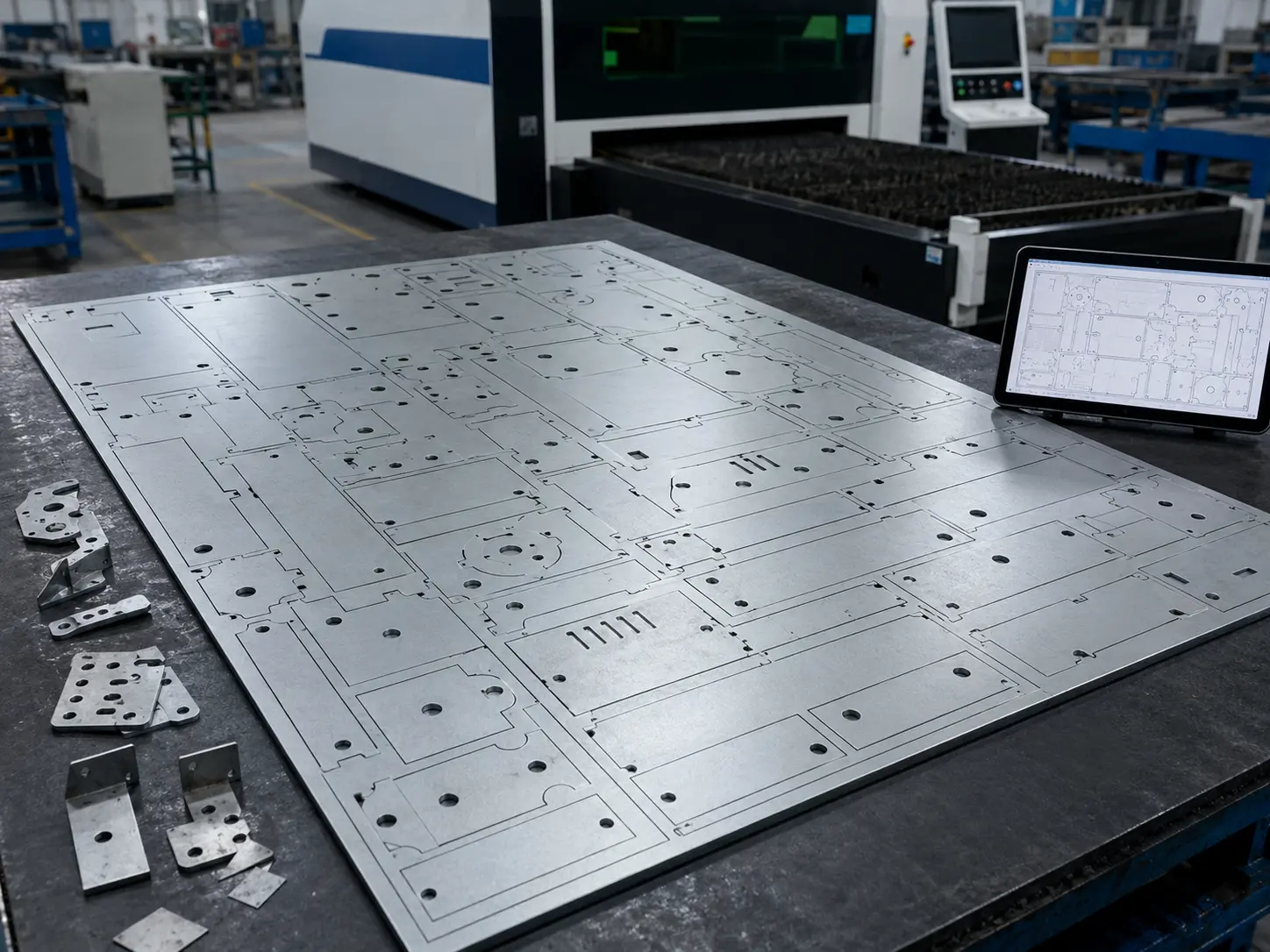

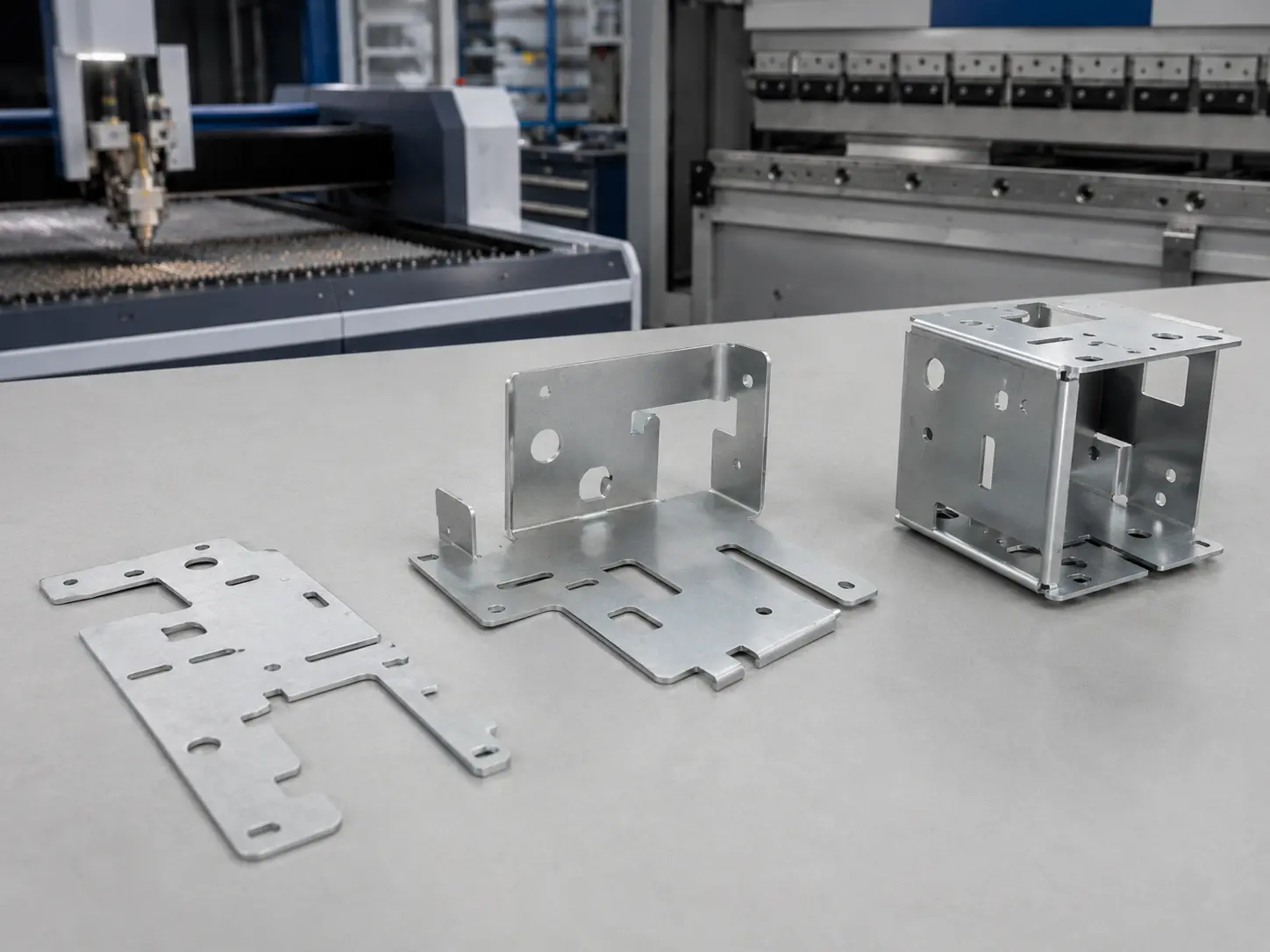

Laser cutting is typically the first step in sheet metal fabrication. Choosing the right cutting method is like choosing the right mode of transportation—each option comes with its own strengths, costs, and best-fit applications.

Cutting process comparison:

Fiber Laser Cutting Explained (2026 State of the Art)

Over the last decade, fiber laser cutting has advanced rapidly and has become the go-to technology for sheet metal cutting. Its main advantages include:

• High precision:
  Thin sheet (≤1 mm) can reach ±0.05 mm; medium thickness (1–6 mm) typically achieves ±0.10 mm；
• High speed:
  Fiber lasers convert electricity to light far more efficiently—often 30–50%—while CO₂ lasers are typically around 10–15%, which is a big reason fiber systems can cut 2–4× faster in many applications；
• Low maintenance:
  Solid-state beam delivery through optical fiber means fewer alignment-sensitive optics and generally lower upkeep；
• Better performance on reflective metals:
  The ~1.06 μm wavelength is absorbed more effectively by reflective materials like copper and brass, addressing a major limitation of CO₂ lasers；

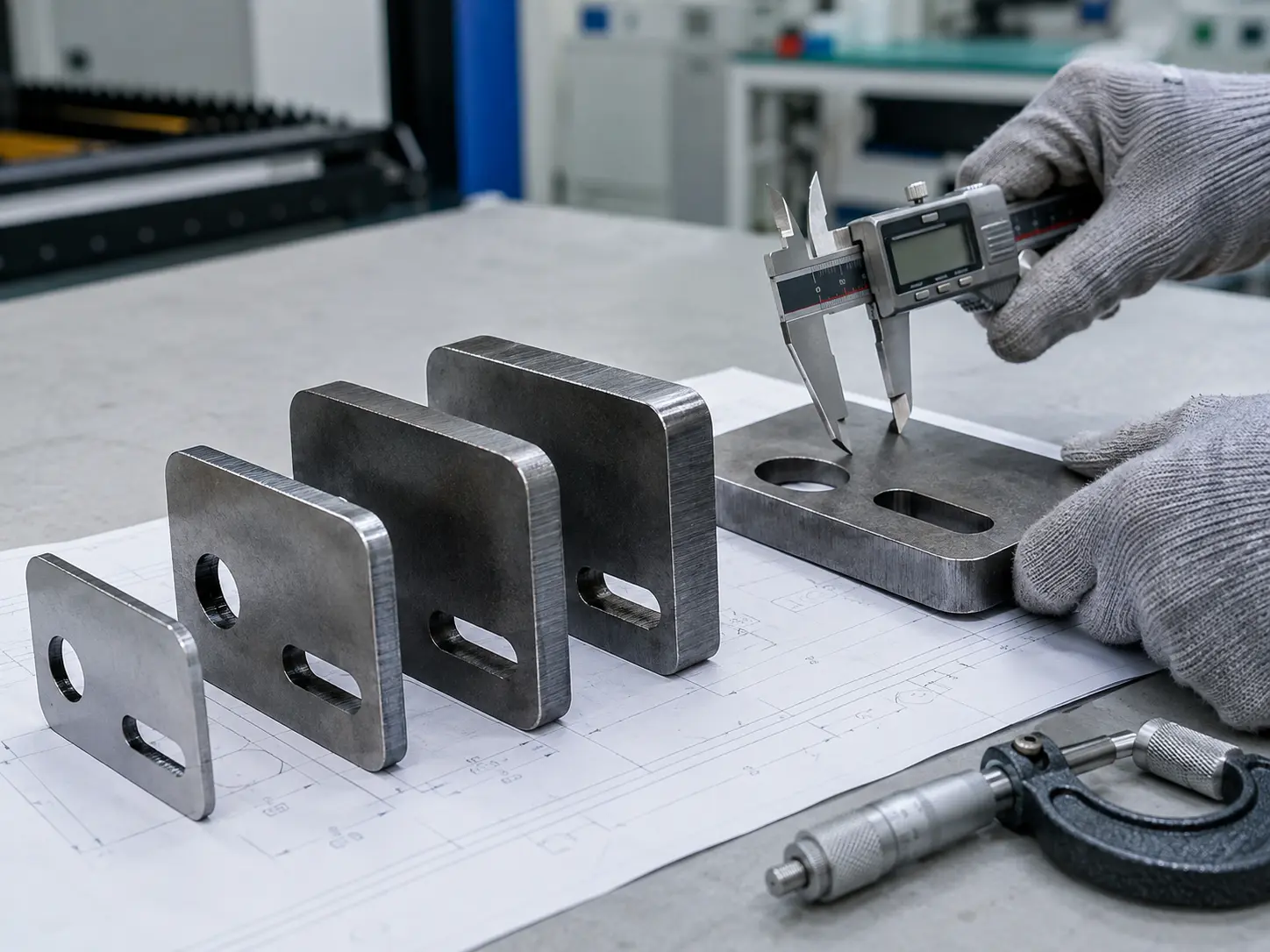

How Laser Cutting Tolerance Changes with Thickness (2026 data)

Process Selection Decision Tree

In sheet metal fabrication, bending is one of the most detail-sensitive operations. Well-designed bends reduce rework and scrap; poorly designed bends can make thin sheet impossible to form correctly.

Press brake tonnage calculation：

Tonnage (tons) = (Length × Thickness² × Tensile Strength) / (1000 × Bending Factor)
In real production, you should also build in a 20–30% safety margin.

• Maximum bend length: limited by the machine bed length; press brakes are typically 3–6 meters long；
• Bending sequence: inside first, outside last; small features first, large features later; special shapes first, standard bends later；

Different materials behave very differently when bending, so the design approach needs to be material-specific. Stainless steel and aluminum are the most common in practice, so we’ll use them as examples.

Stainless steel bending characteristics

• High hardness and toughness with noticeable springback (8–15°)；
• Higher forming force: roughly 30% more than aluminum at the same thickness；
• Tooling requirements: corner radii generally need to be larger than the sheet thickness (e.g., for 5 mm stainless, choose roughly 6–8 mm radius tooling)；
• Bend speed: can be increased somewhat, but watch for surface scratching；

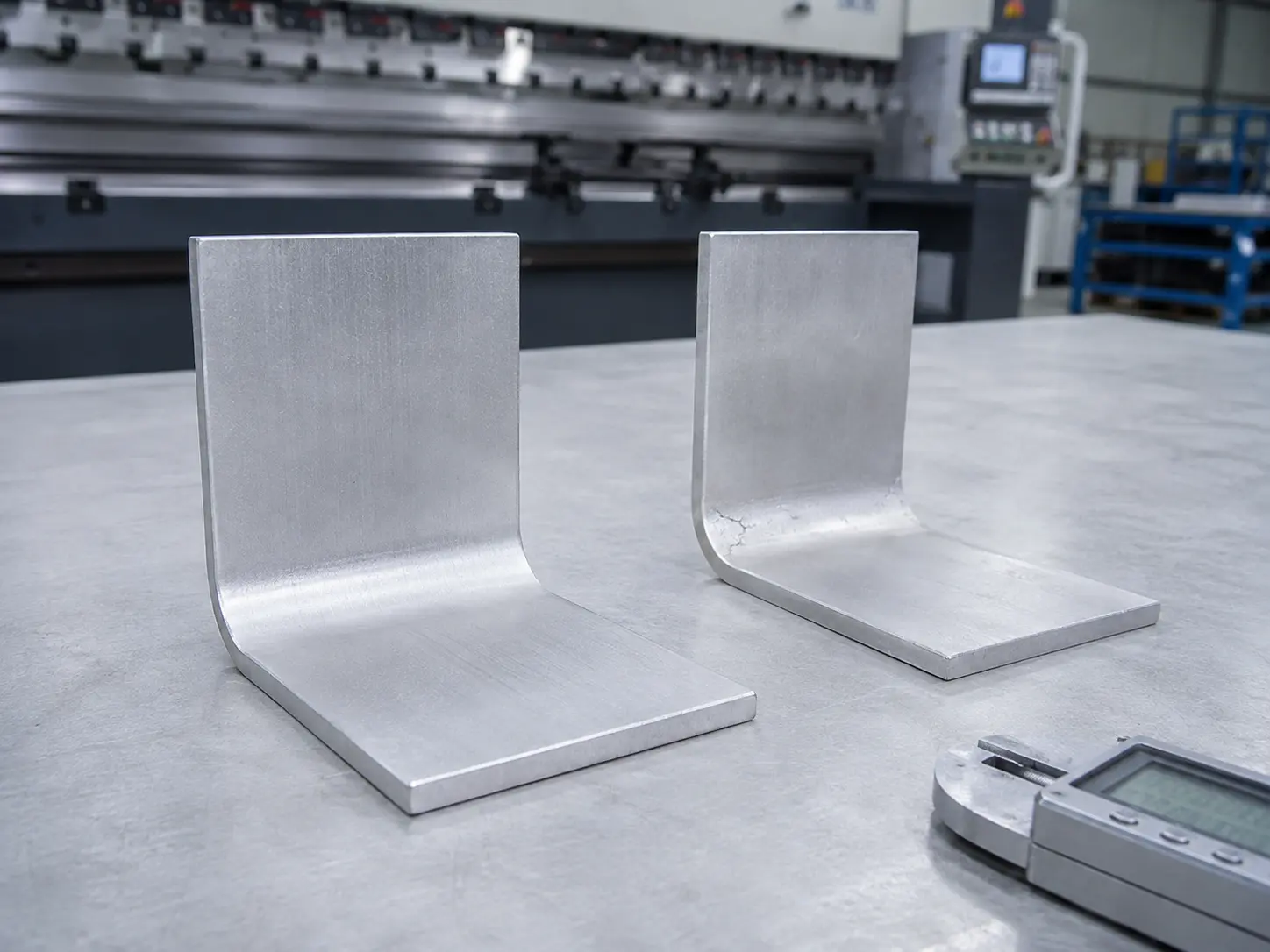

Aluminum bending characteristics

• Soft and low hardness, but can be relatively brittle—thicker sheet is more prone to cracking；
• Too much force can crush the bend line, thin the material, or cause wrinkling；
• Bend speed: keep it slower; ease into pressure as you approach the target angle；
• High-strength alloys (e.g., 6061-T6): preheating to 100–150°C can improve ductility before bending；

ISO 2768 is one of the most widely used tolerance standards for sheet metal. It defines four tolerance classes: Fine (f), Medium (m), Coarse (c), Very coarse (v).

Linear tolerances (ISO 2768-m, the most common default)

Angular tolerances

Geometric tolerances (ISO 2768-K, medium level)

• Straightness (≤100 mm): 0.1 mm
• Flatness (≤100×100 mm): 0.15 mm
• Perpendicularity (≤100 mm): 0.2 mm
• Coaxiality (≤50 mm diameter): 0.1 mm

Beyond ISO standards, industry “machine reality” tolerances are often more practical:

Springback is unavoidable in bending—like a spring, the metal always tries to “relax” back toward its original shape.

Typical springback (90° bend, 2026 reference)

There are many welding methods, but in sheet metal fabrication the most commonly used are spot welding, MIG, and TIG. Choosing the right process—and designing welds correctly—can noticeably reduce cost while improving quality.

Welding introduces localized heat, and distortion is one of the most common sheet metal quality issues. The strategies below help keep parts flat and dimensions stable:

• Symmetrical weld layout: balance weld placement to avoid one-sided heat input
• Stitch / staggered welding: weld in segments, letting each section cool before continuing
• Keep welds near the neutral axis: reduces bending moments and warping
• Use fixtures and clamps: hold parts in position with proper jigs and supports

Stamping and forming are another major part of sheet metal fabrication, especially well-suited for high-volume production. The key advantage is simple: once the tooling is built, the per-part cost drops dramatically.

Deep drawing is one of the most demanding sheet metal forming operations because it pushes the material into extreme plastic deformation.

• Depth limit: ≤ 3×T (for features like embosses and beads)
• Blank-holder force control: must be calculated precisely to prevent tearing or wrinkling
• Draw ratio control: for cup-shaped parts, the draw ratio is typically ≤ 2.5; beyond that, multiple draws or intermediate annealing may be required

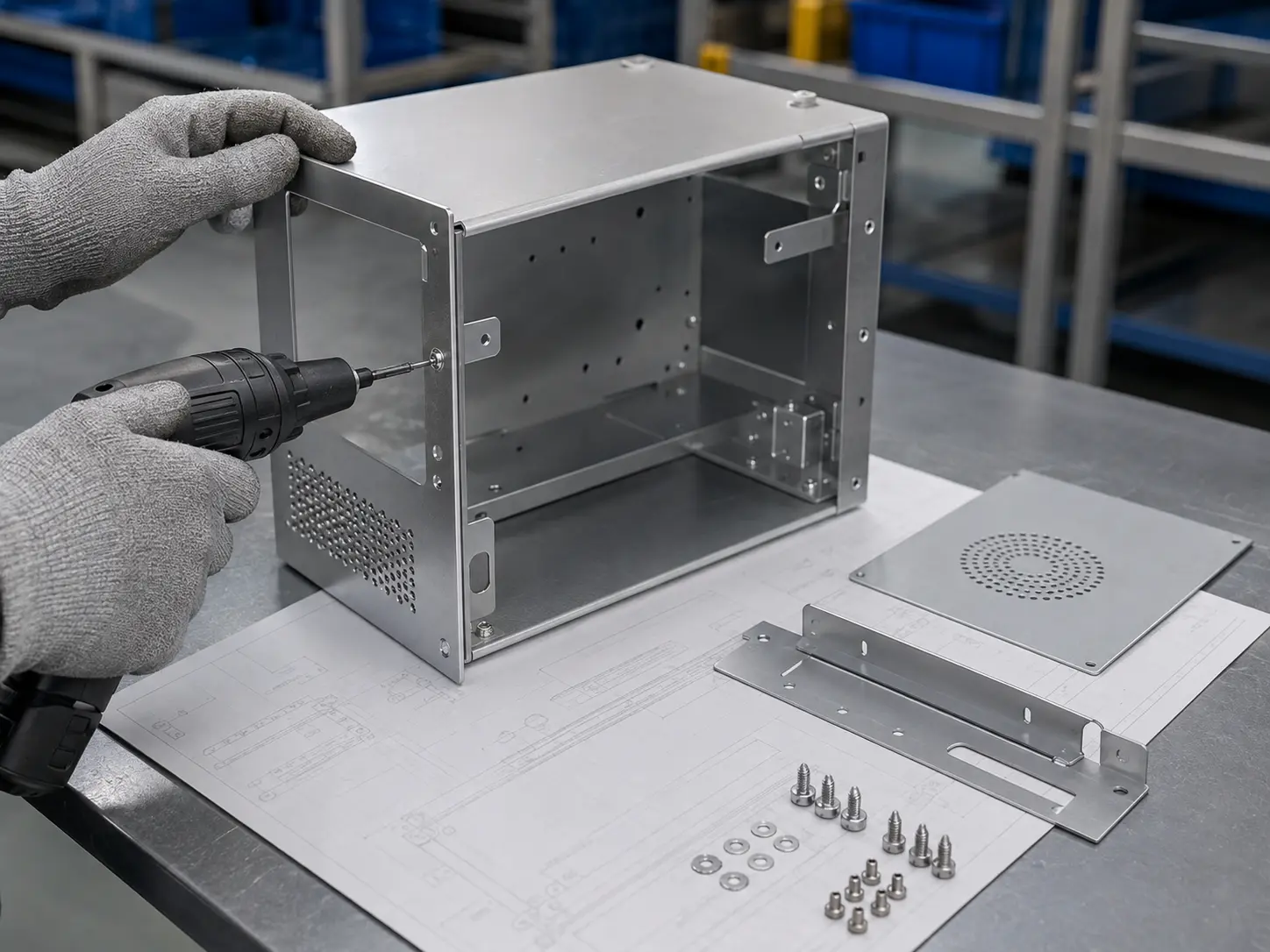

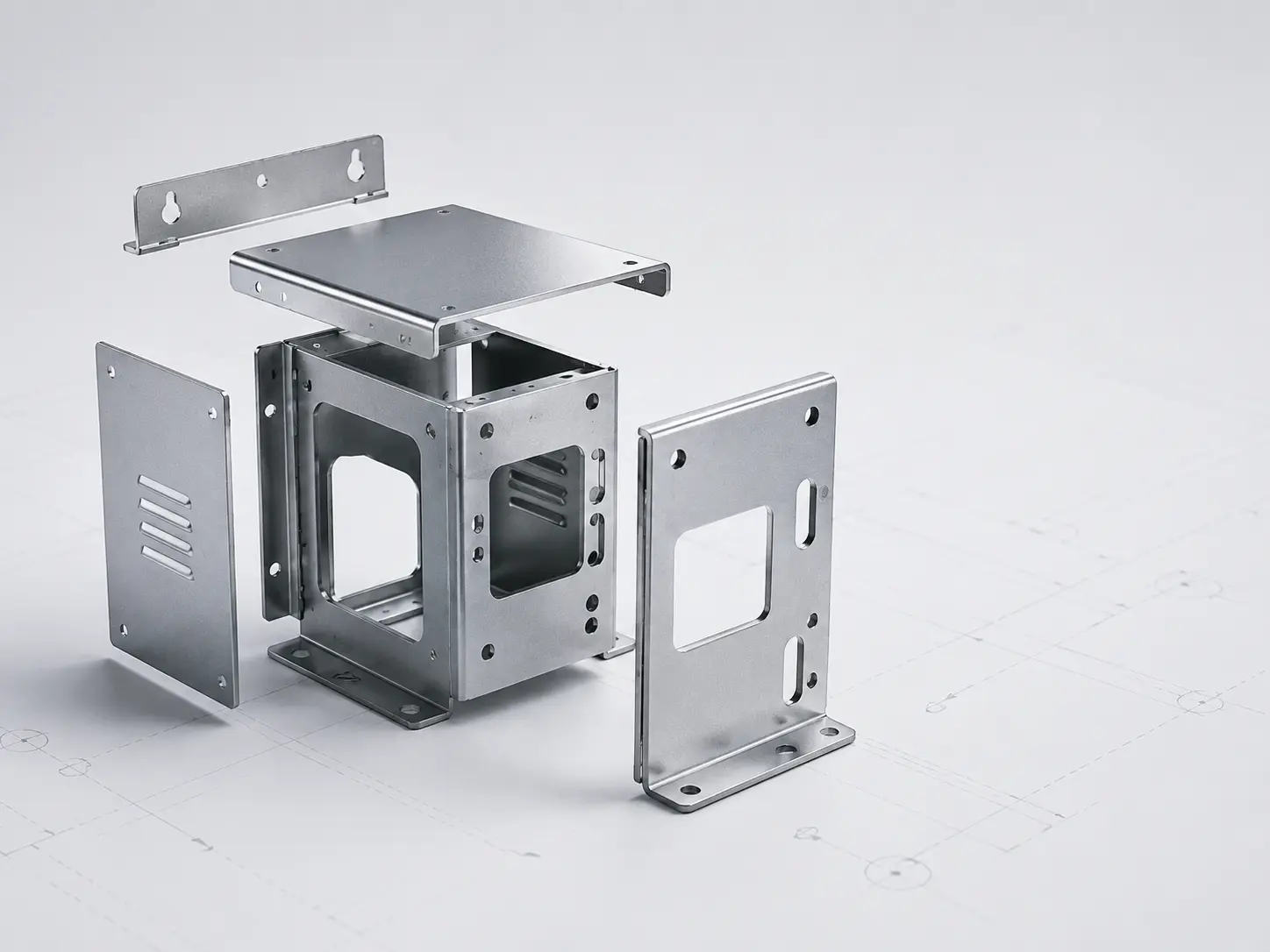

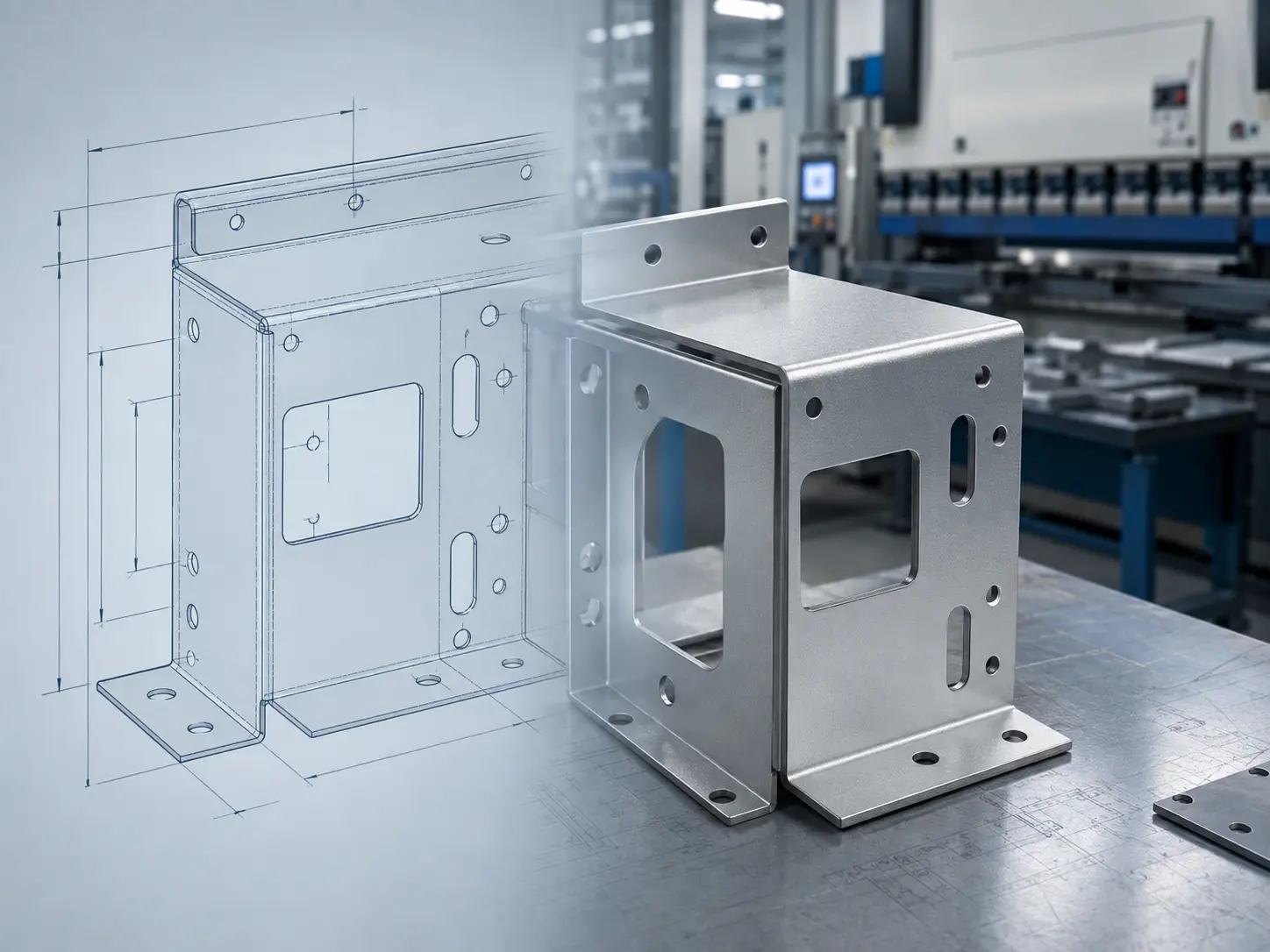

The complexity of a sheet metal design directly drives manufacturing cost. In practice, every added bend, hole, or weld adds cost. Flip that around and you get a powerful rule: every feature you can remove—without sacrificing function—reduces cost.

Practical ways to simplify a design:

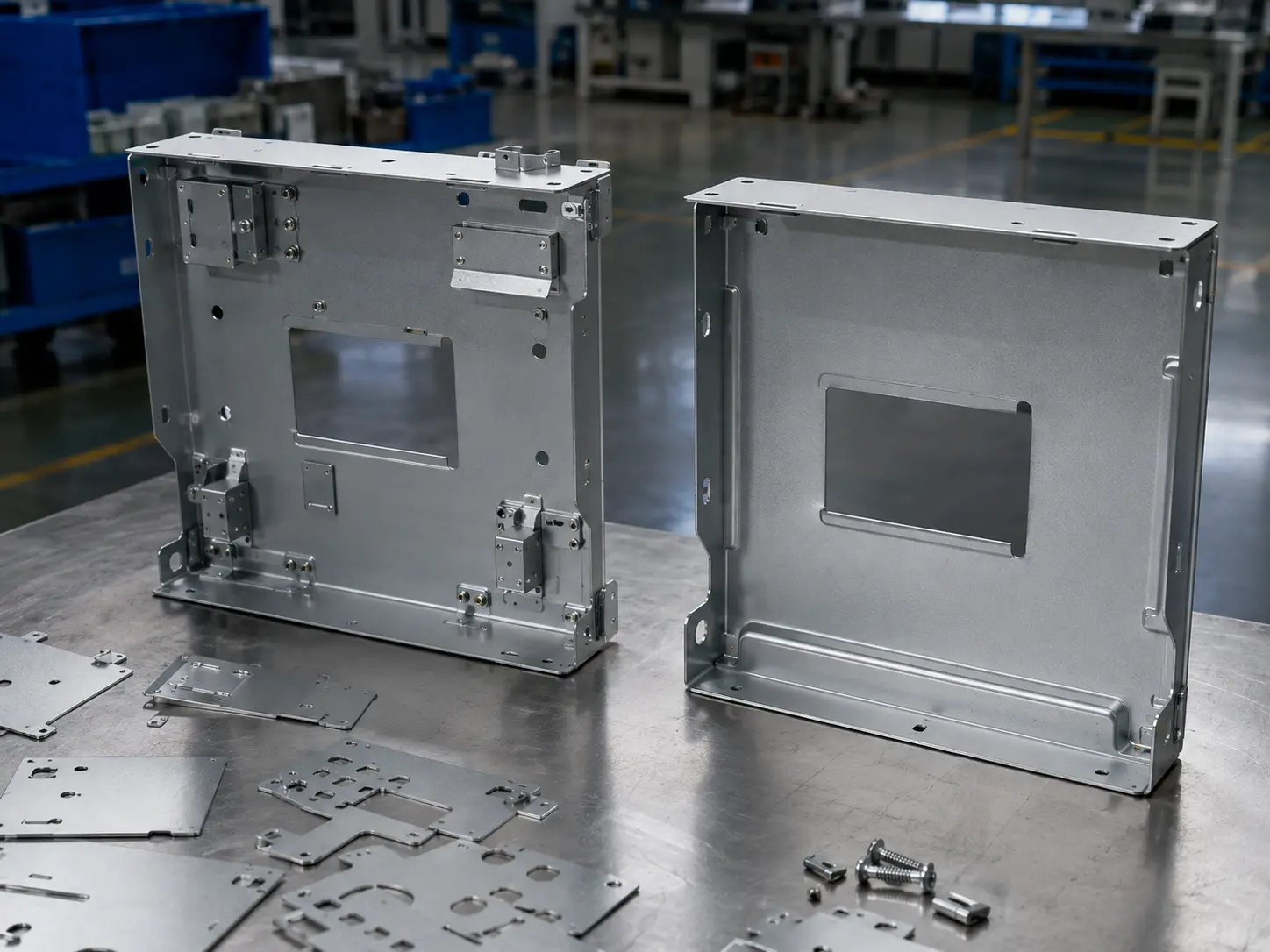

• Combine parts: Replace multi-piece assemblies with one-piece designs where possible；
  Example: A four-part welded assembly was redesigned into two bent parts, cutting cost by 40%.
• Reduce the number of bends: Rework the geometry to eliminate unnecessary bends；
  Example: A part was optimized from 12 bends down to 6, improving fabrication efficiency by 60%.
• Standardize bend radii: Use the same bend radius across the design to reduce tool changeover time；
  Example: Standardizing all bend radii to 1×T reduced tooling change time from 30 minutes to 5 minutes.
• Standardize hole sizes: Stick to standard hole diameters to avoid special tooling costs；
  Example: Changing a non-standard 5.123 mm hole to 5 mm eliminated the need for a custom tool—tooling cost dropped to zero.

1. Reduce bend count: simplify the structure；
2. Standardize bend radii: use standard tooling；；
3. Avoid overly tight bends: makes springback compensation easier and more consistent；
4. Batch bending: bend multiple parts per setup to reduce handling and setup time；

1. Reduce weld length/count: replace welds with bends where possible；
2. Use spot welds instead of long seams: when mechanical requirements allow；
3. Add locating holes/features: simplifies fixturing；
4. Design modularly: fewer weld joints, better repeatability；

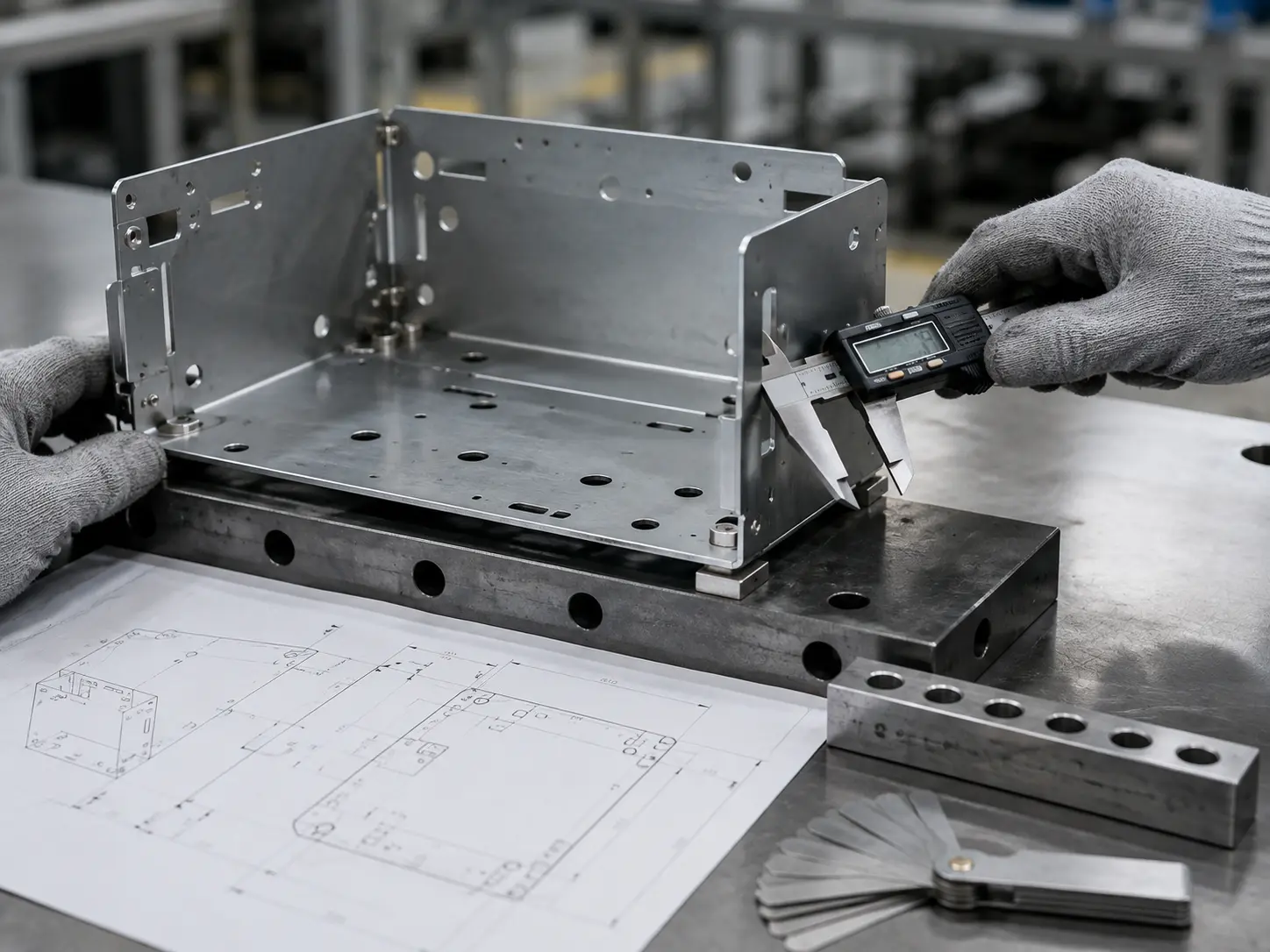

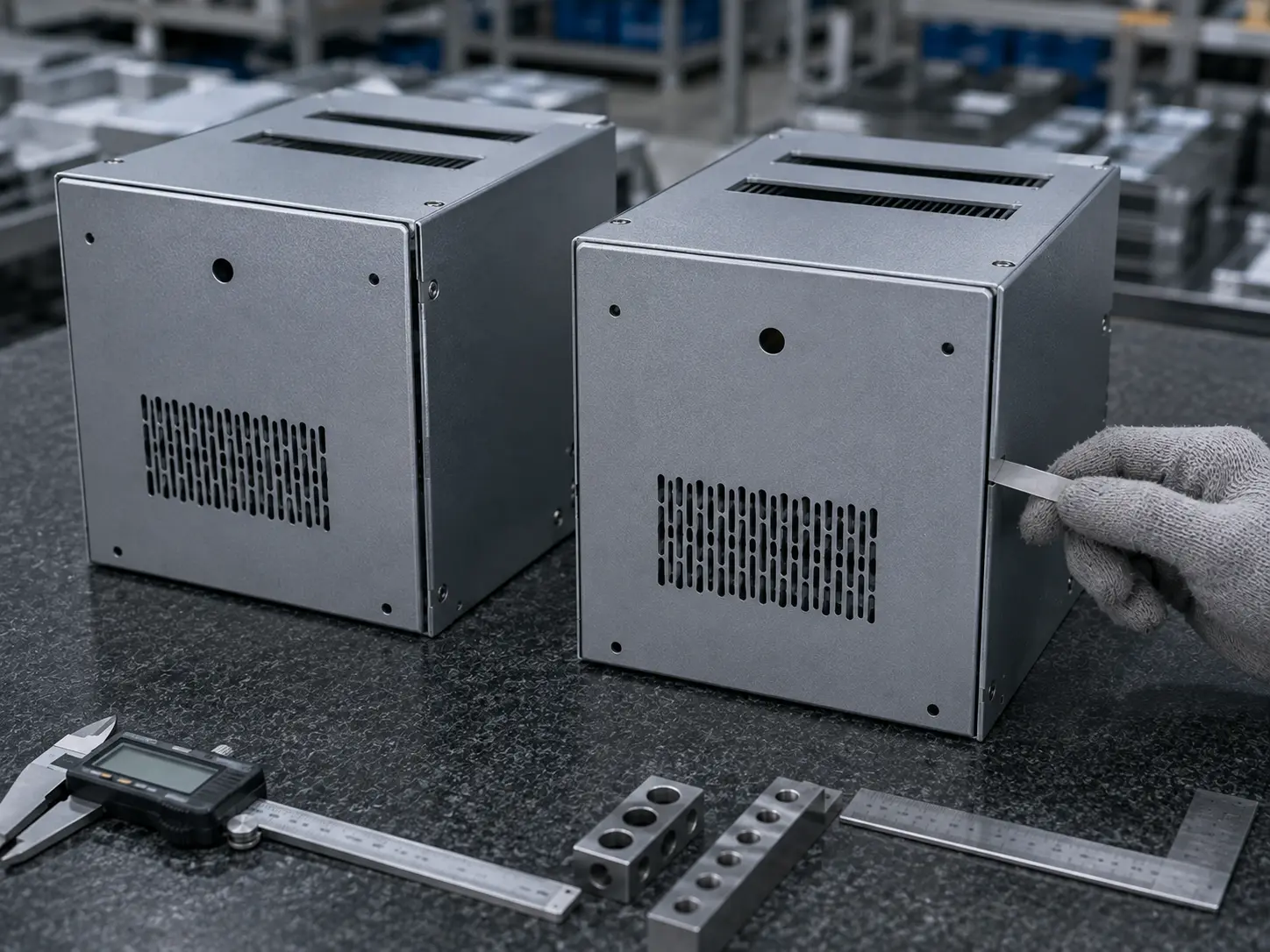

If a part has a three-link dimension chain (A → B → C) and each link has a tolerance of ±0.1 mm, the total variation from C back to A can be ±0.3 mm—not ±0.1 mm.

Ways to control tolerance stack-up

• Use a common datum scheme: consistent assembly datums shorten tolerance chains
• Allocate tolerances intelligently: tight where it matters, looser where it doesn’t
• Apply GD&T: clearly define functional relationships and assembly requirements
• Verify in CAD: run tolerance analysis and validate assembly feasibility early

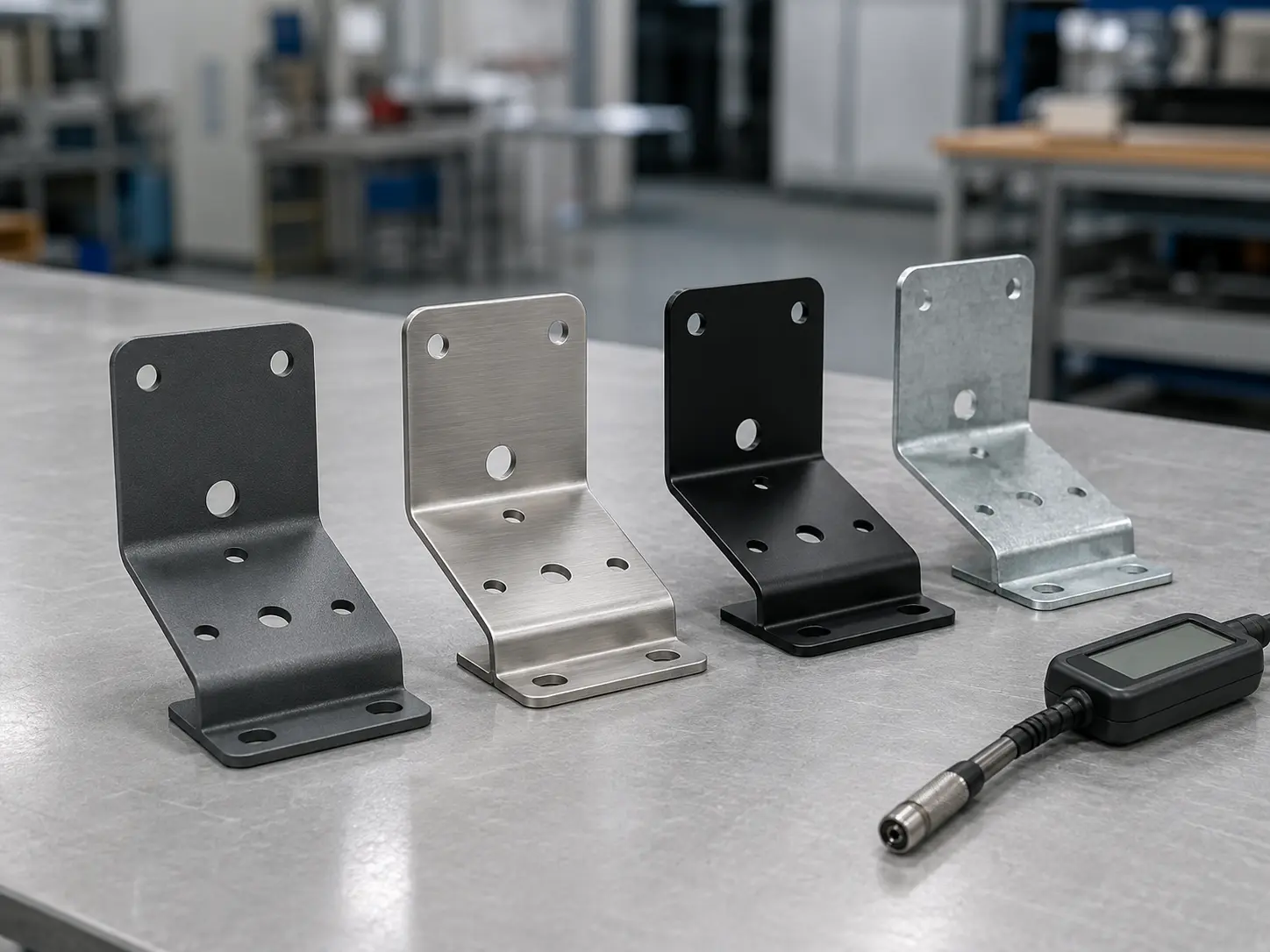

Surface finishing isn’t an afterthought—it needs to be designed in from day one. Here’s a common (and costly) mistake: a tight-tolerance assembly is designed to fit perfectly, but after finishing, the added coating thickness makes the parts impossible to assemble. It’s an easy oversight—and completely avoidable.

Powder coating is one of the most common—and most widely used—finishing processes in sheet metal fabrication. It’s environmentally friendly, durable, and available in a wide range of colors, which is why many SR MFG customers choose it.

Powder coating thickness guidelines (2026 reference)

Advantages of powder coating

1. Eco-friendly: No VOC emissions
2. Durable: Thicker coating with strong wear resistance
3. Cost-effective: Competitive cost for mid-volume production
4. Color options: 50+ stocked colors, with custom matching available

Limitations of powder coating

1. Thickness limits: Too thick (>150 μm) can reduce leveling and surface quality
2. Temperature constraints: Typical curing is 180–200°C, so some materials (e.g., plastics) won’t work
3. Hard to touch up: Local repairs are difficult and often not practical

Anodizing is primarily used for aluminum. It significantly improves corrosion resistance, surface hardness, and overall appearance.

Design considerations for anodizing

1. Allow for coating build-up: Precision holes and tight fits should include 0.05–0.1 mm allowance;
2. Drainage for enclosed structures: Add drain holes to prevent trapped chemicals;
3. Racking point placement: Avoid visible marks on cosmetic surfaces;
4. Color consistency: Color can vary by batch; critical parts should be processed in the same lot;

Electroplating deposits a metal layer onto a surface using an electrochemical process. Common types include zinc, chrome, and nickel plating.

Design considerations for plating

1. Hydrogen embrittlement risk: High-strength steels may require post-plate de-embrittlement (baking);
2. Deep holes: Thickness may be insufficient inside deep holes; special processes may be needed;
3. Racking point placement: Avoid visible marks on cosmetic surfaces;
4. Thread compensation: Threads may need post-plate gauging or rework after build-up;

Precision fits must include build-up allowance—otherwise parts may no longer assemble after finishing.

Closed or boxed structures must include drain holes to prevent chemical entrapment and corrosion.

Holes that must remain uncoated—such as precision locating holes or threaded holes—should be masked, otherwise they may become unusable after finishing.

• Standard colors: Use standard systems like RAL or Pantone to reduce cost;
• Texture consistency: Texture can vary between batches; critical parts should be processed as a single lot;
• Weather resistance: Outdoor parts must use weather-resistant pigments and formulations;

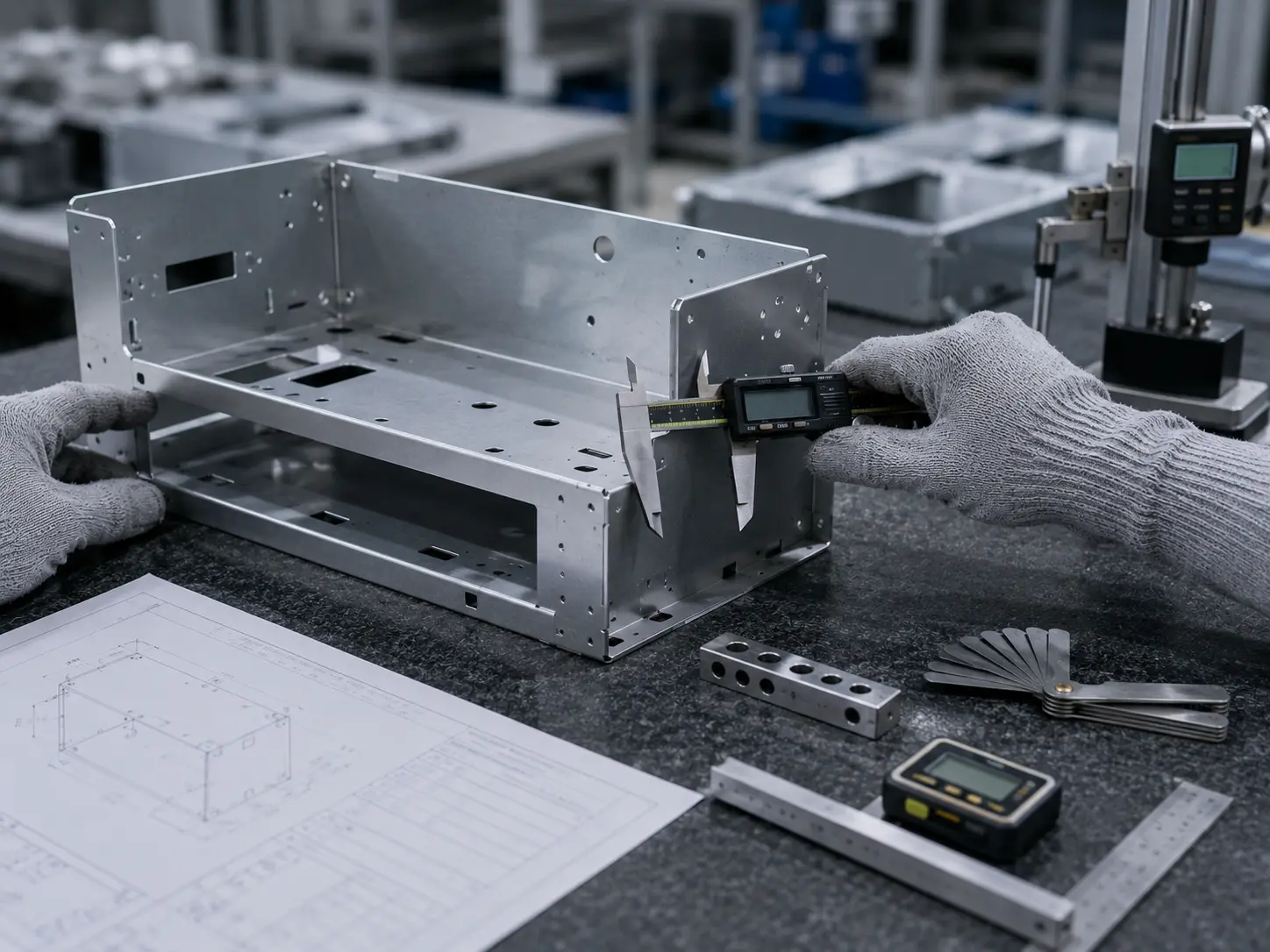

Dimensional inspection:
Use calipers, micrometers, height gauges, pin gauges, and other measurement tools to verify critical dimensions. Tight, well-managed tolerances are the foundation of reliable assembly—if the dimensions drift, the build won’t fit.

Choosing the right international standard:

Whether you source from China or elsewhere, these are the essentials to align upfront:
